What are we talking about?

DS	DSi	3DS
two GBAs and a GPU in a trenchcoat	✨multimedia✨ (web browser, cameras)	Autostereoscopic 3D

NDS hacking

• First Nintendo console to use cryptography
• ... only symmetric cryptography

After key extraction

Nintendo didn't like this

So they used public-key cryptography for the DSi

Background

We can't be the first ones to look into the DSi, right?

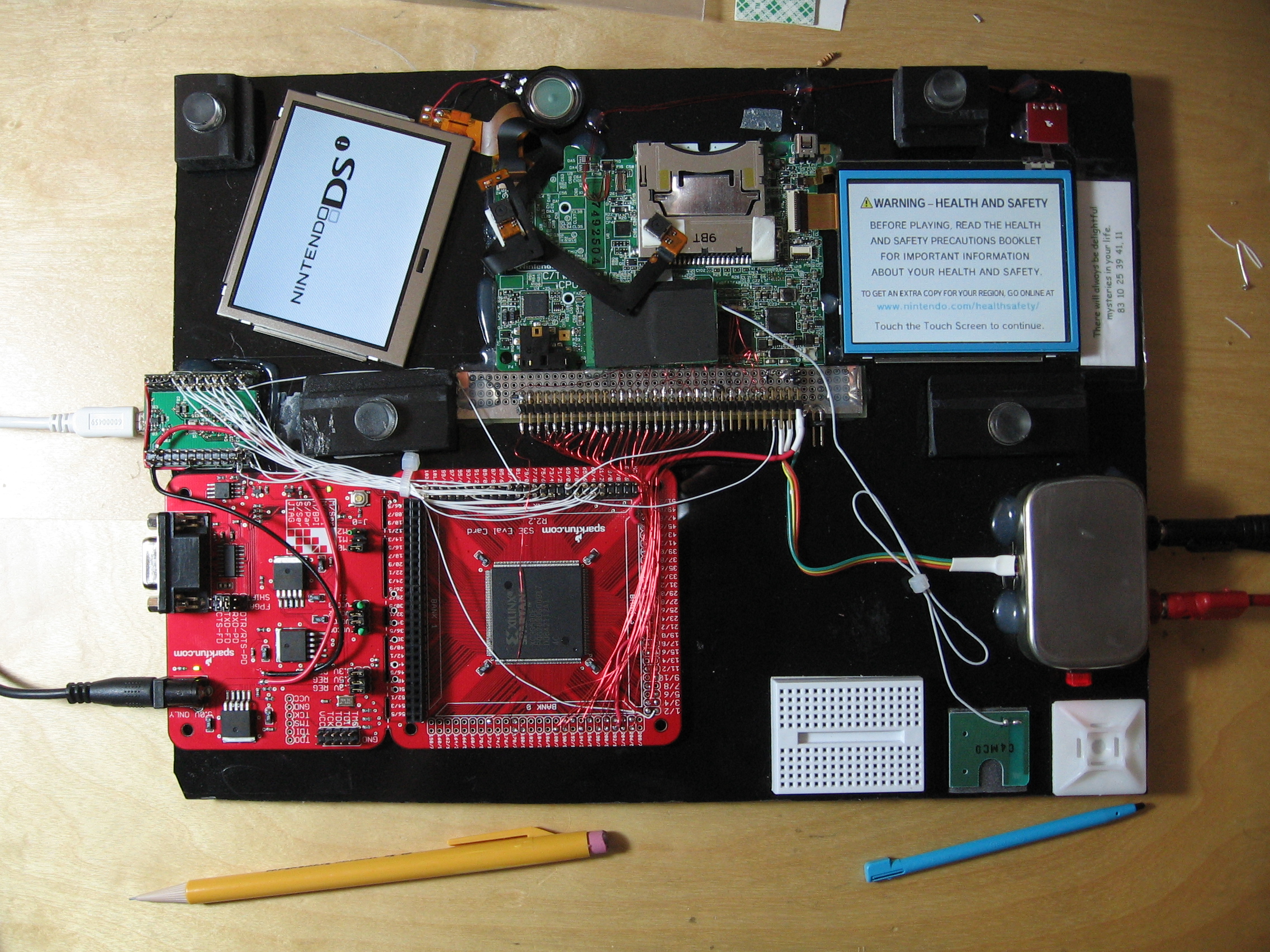

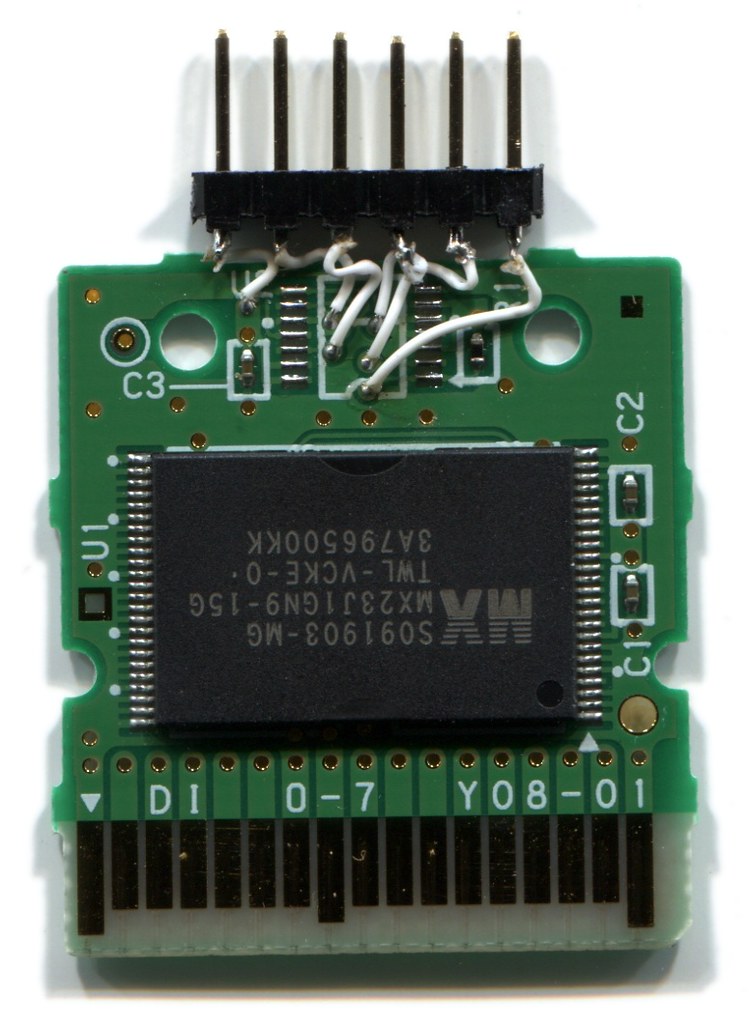

• scanlime's RAM tracer (2009)

• ... and nothing else happened

• 3DS got released (2011)

• ... and badly hacked (2015, 2016)

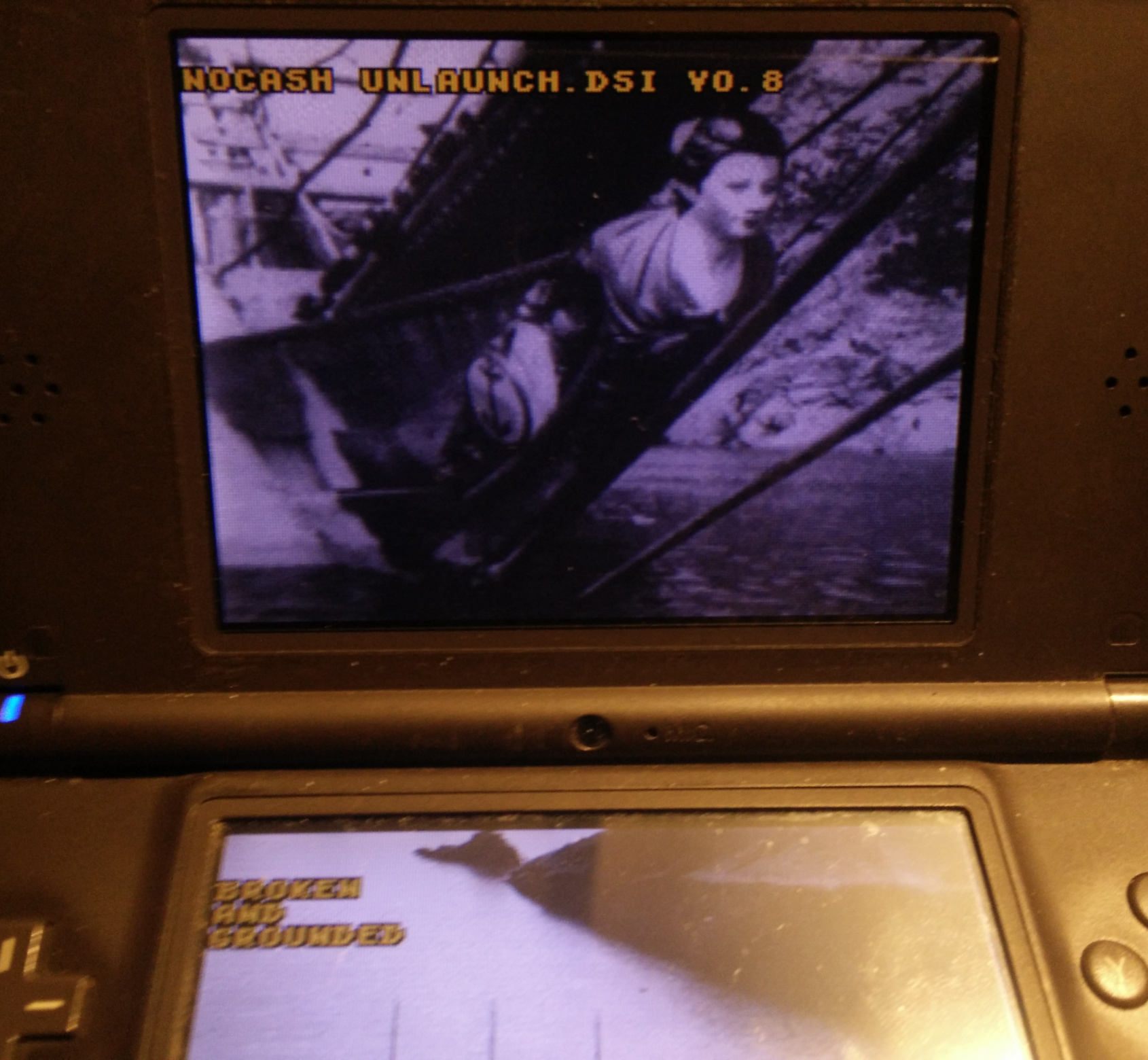

• Unlaunch (2018): DSi bootcode exploit

Problem solved, right?

Not so fast

• Unlaunch has some quirks
• Unlaunch exploits the second-stage bootloader:
  • Modifies eMMC in unfun ways

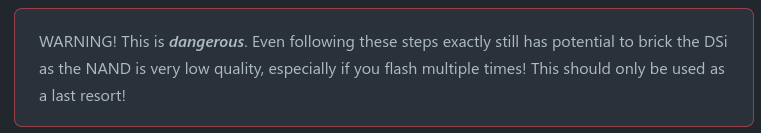

  • eMMC erase-write lifetime is bad:
• No bootrom dumps yet :<

We want the bootrom!

Secure boot strikes back

Can't we just replace the eMMC chip?

• eMMC CID (Card ID) used to derive FAT FS encryption key
  • And many other things
• ConsoleID (fuses) also used as key material

eMMC replacement won't work :(

3DS TWL mode

• 3DS includes hardware switch to enter DSi mode
• Implemented in low-level firmware
• DSi mode runs standard second-stage bootloader

Unlaunch origin story

Finding vulnerabilities in a black box sucks

So we need to dump these bootroms first

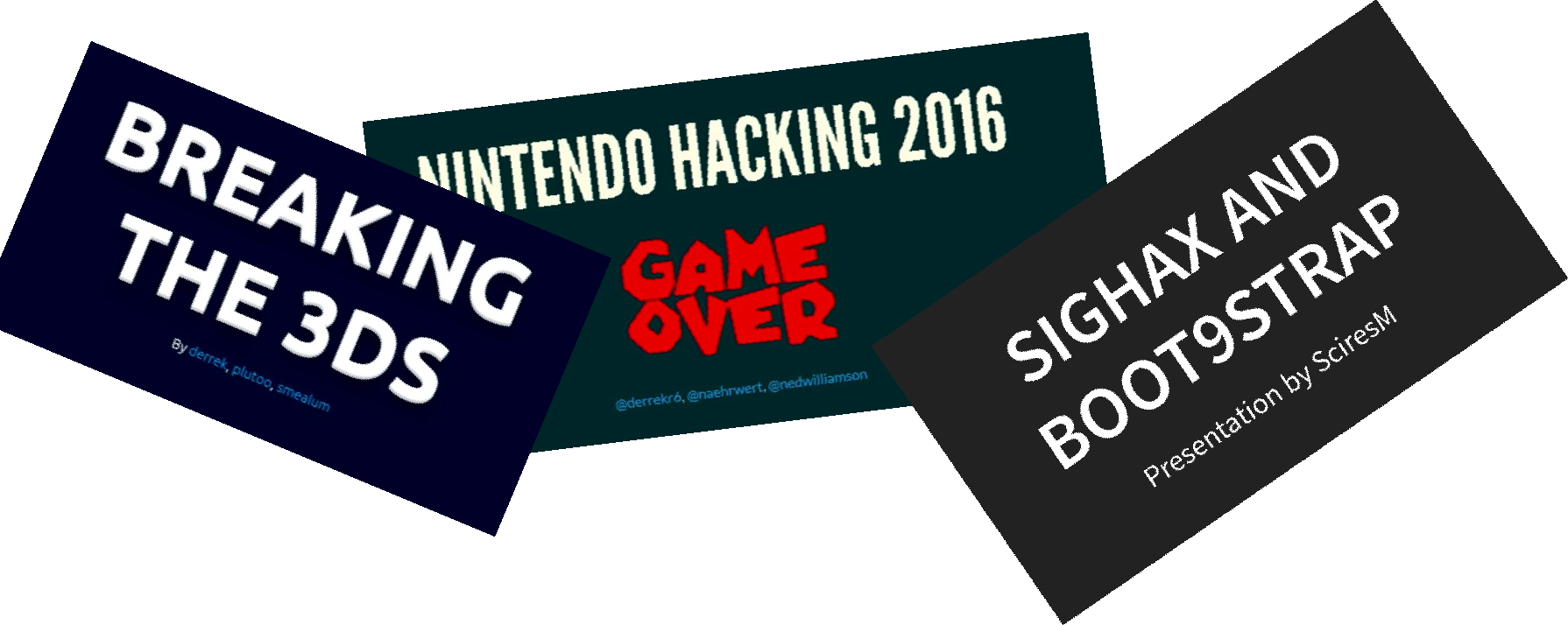

Backporting a 3DS hack

Extract boot ROM using fault injection

Vector-glitch hack

People already tried this...

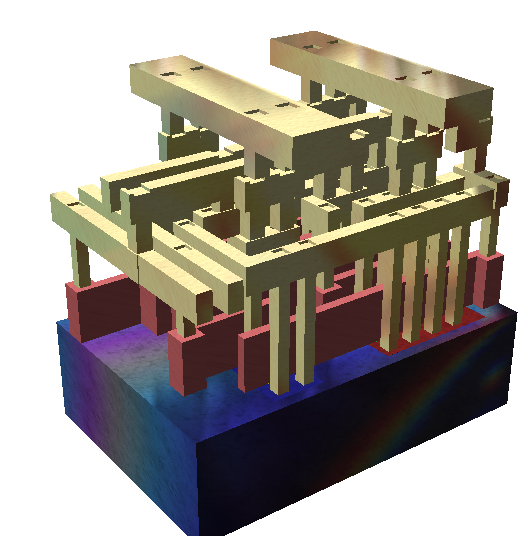

Voltage glitching woes

(note: this is a simplification)

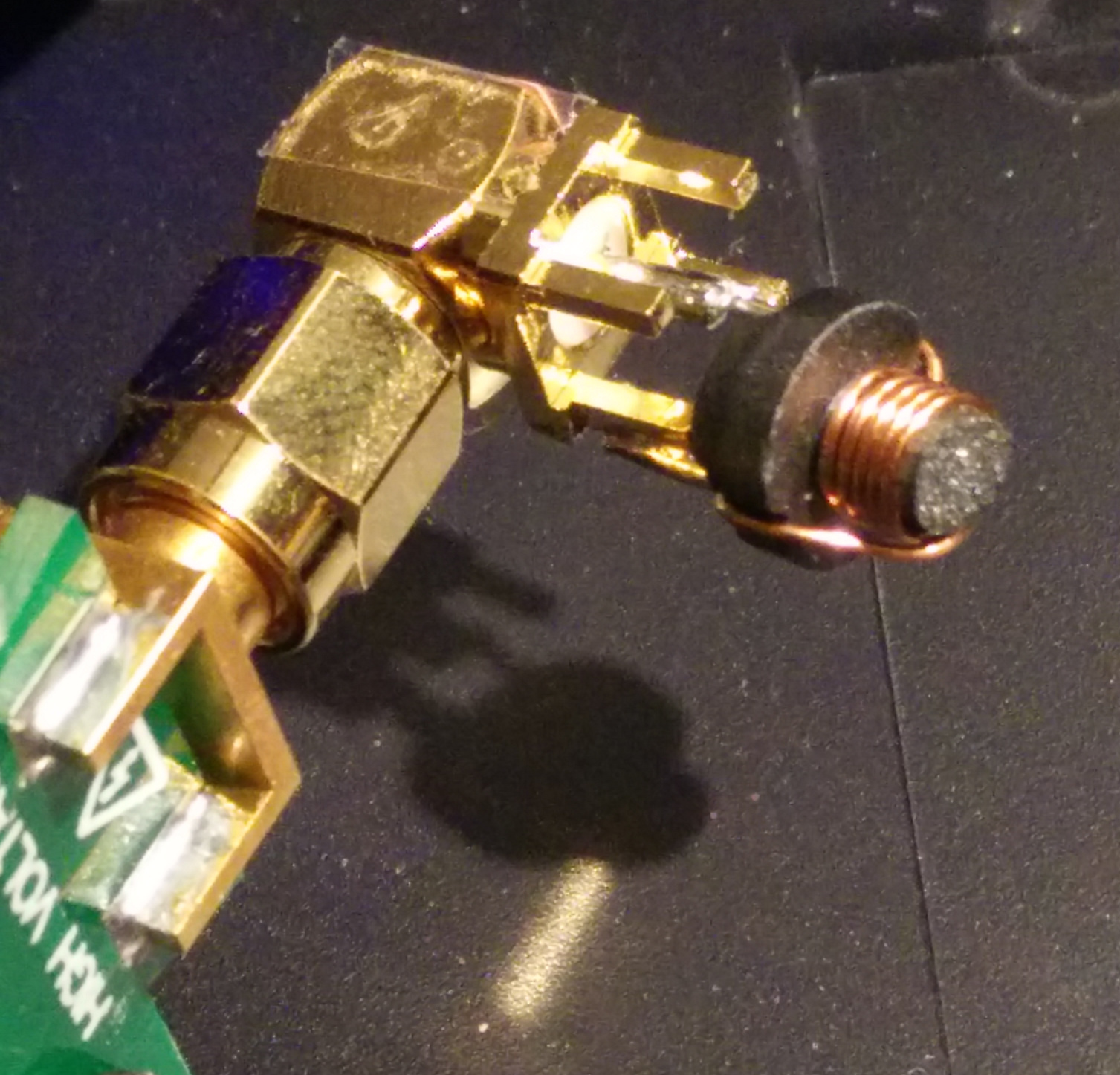

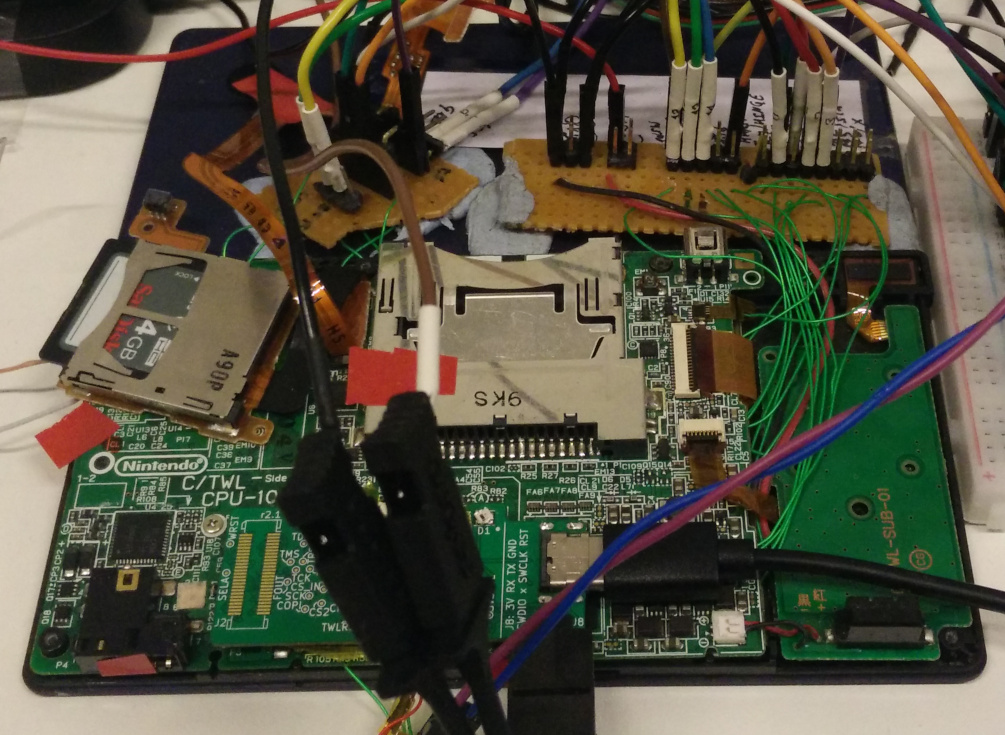

Electromagnetic fault injection

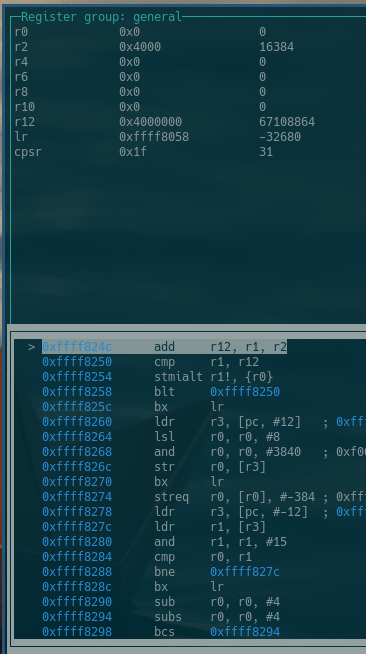

ARM7 ROM unlocked

SHA3-256:

ccc5cce4ece3204e6ece25bdf5684004 3375ce1771fb998ed9f641ca9fe00bc1

But...

ARM7 ROM only contains I/O driver code, no cryptography

• We need the ARM9 boot ROM!

Backporting more hacks?

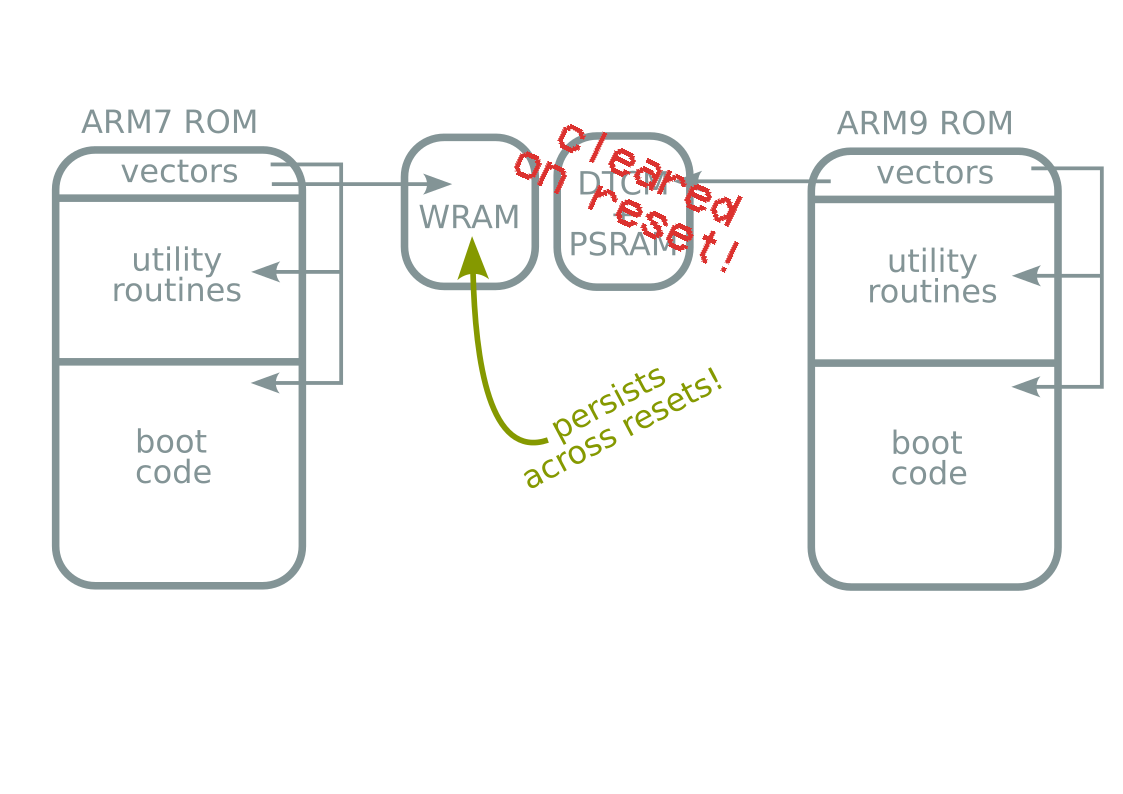

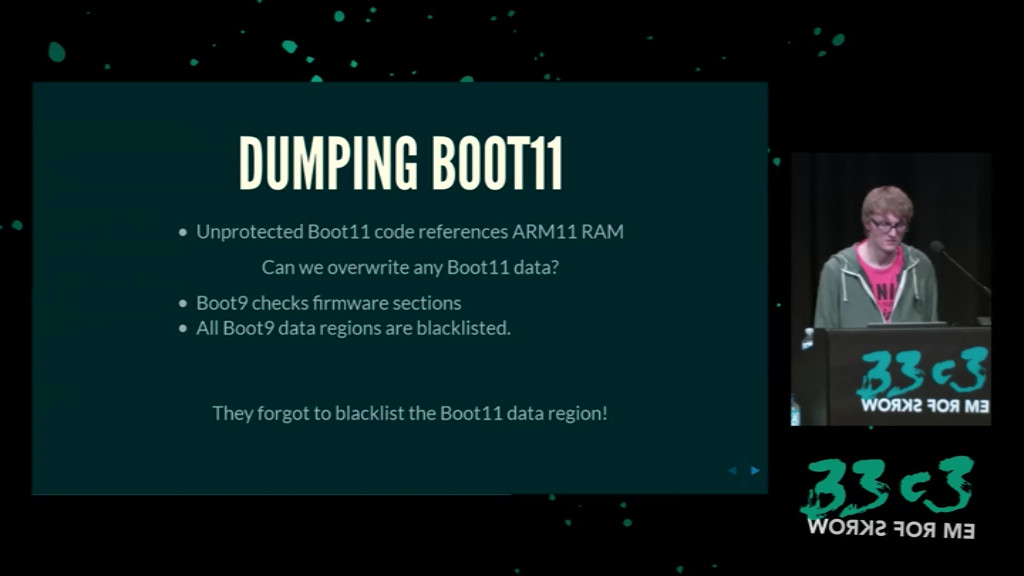

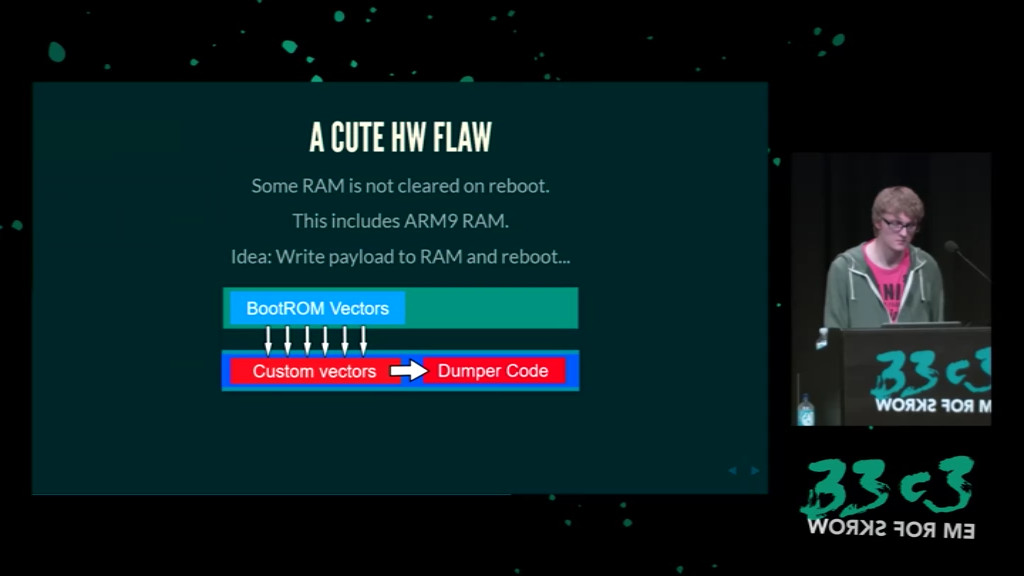

• 3DS: use one core to take over other cores

Doesn't work on DSi :(

Vector-glitch hack on ARM9

Also not possible :(

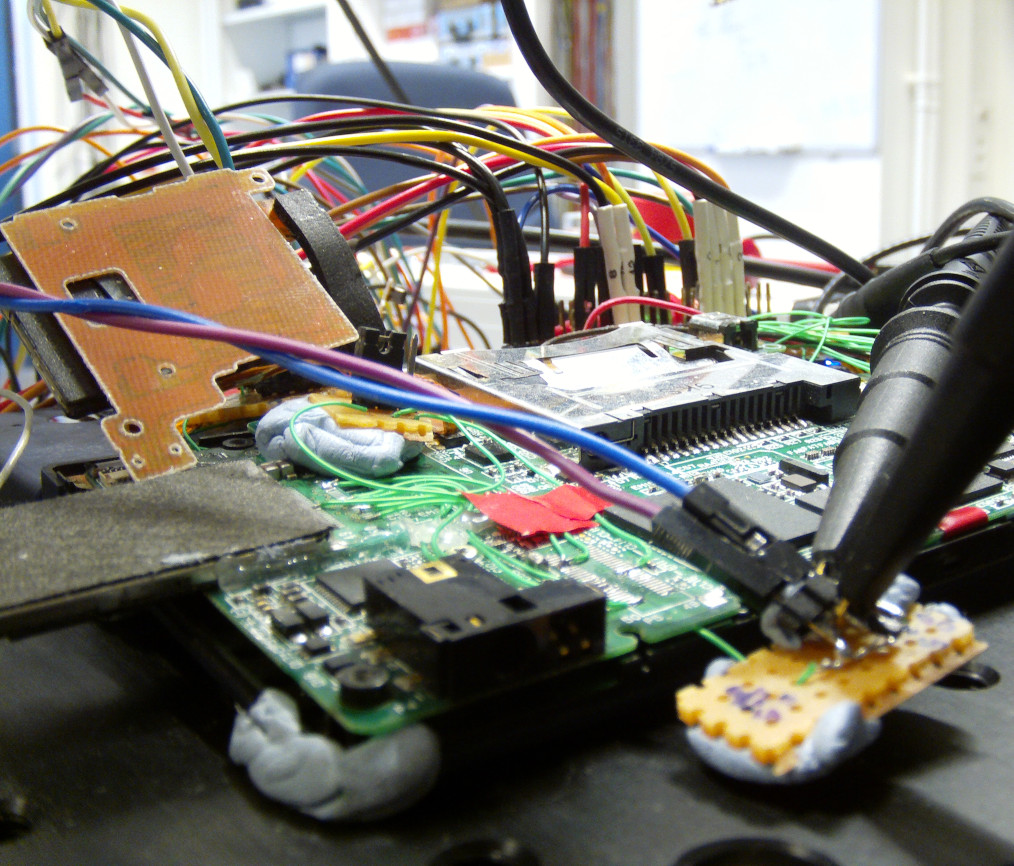

Time for more glitching

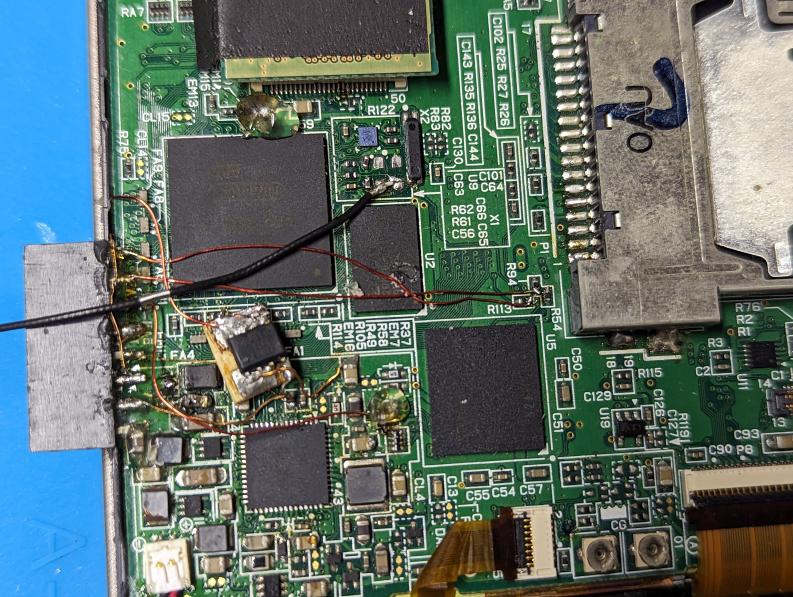

Another setup

from stuckpixel and Normmatt

In action

Boot medium selection

1. Magic key combo + lid closed? → NDS Gamecart
2. Bit set in SPI boot configuration? → eMMC
3. Else (or eMMC fails) → SPI

Boot procedure

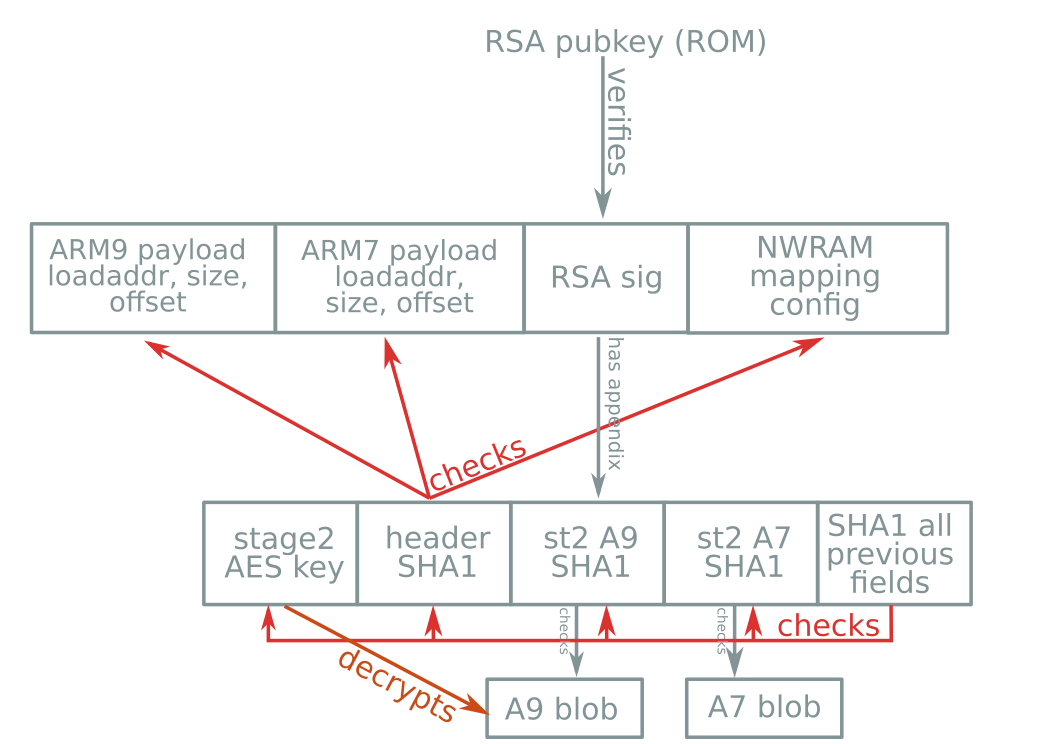

Boot header & signature format

Boot procedure

Signature format?

No bug here :(

⇒ no sighax :(

Attacking SHA1

"SHA1 is unsafe!"

SHA1 collision attack known Find x and y (x ≠ y) s.t. H(x) = H(y)

... we need a second preimage Given x: find y ≠ x s.t. H(x) = H(y)

Attacking RSA-1024

How to attack RSA:

Lol, no

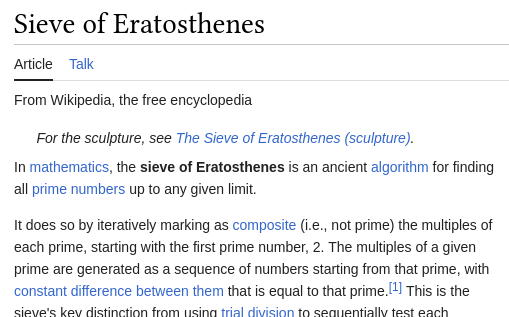

This still takes too much processing power

... but these public keys were generated in 2005... maybe they made a mistake here?

No dice

NSA please help us & factor these public keys

• GCD: cc 98 7b 41 7d 9d 7c 80 02 85 db 10 99 8c d4 a7 86 7a ef da 43 a9 6d 0b 55 b0 10 73 67 99 c2 d9 f0 72 d6 fb 1d a6 17 9a 77 89 87 e7 e8 c8 c0 86 36 bf 5d 2c d7 5a 1f ea e0 4f 66 c7 83 a8 33 f4 93 73 9e 3a 97 70 52 5e 3d 9d 0e ed 50 4f d6 5f c4 36 71 91 c4 16 81 ca cf 92 4e ad 1c 32 70 dc 58 e5 89 89 a3 6a 09 43 90 f3 f1 8e 40 4f b7 f1 68 7f 30 f7 6d 00 8a 9c d4 87 25 4a 98 c9 66 2f
• eMMC: f1 f5 1a ff 66 f9 b3 69 4d cb 78 de af 31 1b 78 3c 07 2a ac 94 30 11 11 4a 1c f6 fe 62 b0 91 b5 ef 0e ba 3a a9 ec 3e a0 1c 5d f6 66 65 3e 18 df 22 53 3b d5 e8 d6 ff 58 97 0b 24 e8 86 fa 87 8b 62 66 99 24 a8 fa 87 f2 74 00 4f ea 2f f6 23 e1 f2 90 7c a4 67 1f ca 28 3e 86 b6 ca c5 46 a7 9c 75 c8 0f eb 32 88 2c 3d 1d f7 d5 dc 1a 19 98 e9 f6 26 d4 fc 76 cb 23 13 58 cb 43 a9 b3 cb a3 c5
• SPI: b8 5f 0f db 26 2c 1a fc f8 6e 37 a7 cd d2 11 d4 55 20 3c a8 fb 10 6e de c7 03 6e d7 d6 36 3b 66 33 f4 d6 27 58 65 b6 32 b9 27 7a 74 ce 1d 41 db d9 6a 04 86 ee 72 71 b3 86 73 a0 3b 83 48 62 7b 22 a2 0b 77 38 dd 02 73 76 c4 f8 52 3d ea 5c 6f 5d f2 62 e4 5f 7a 90 1c 16 a1 8c ff 05 88 86 2e 1c 82 62 76 c8 ac 79 87 f0 a1 d5 7d 93 99 d5 cd 5d 48 55 4d 30 31 5d c1 b1 5a 32 45 11 f9 11 cb
• e = 65537

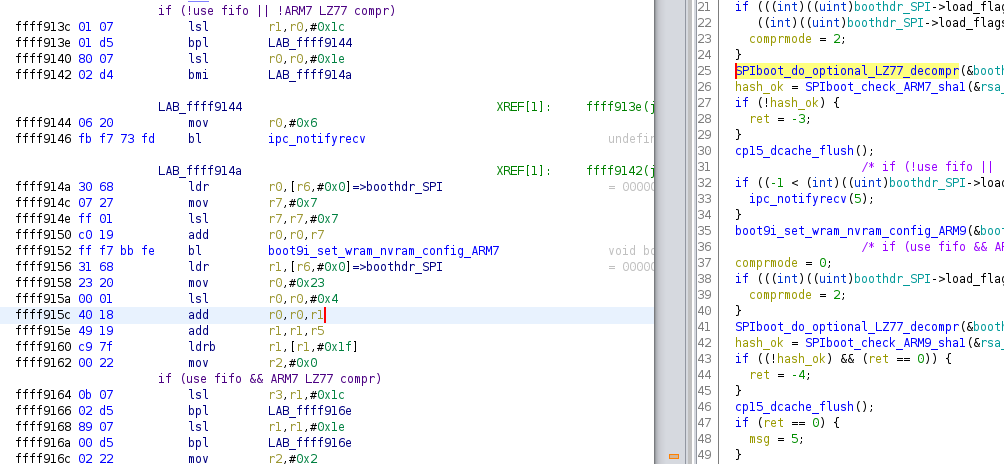

Code vulnerabilities

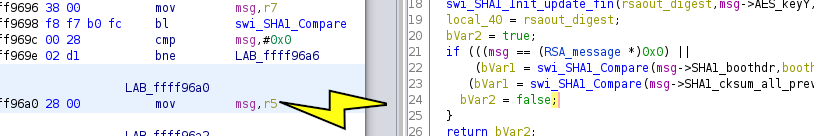

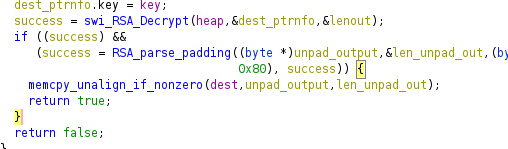

• Payload size and load address never checked
  • Caught by RSA signature

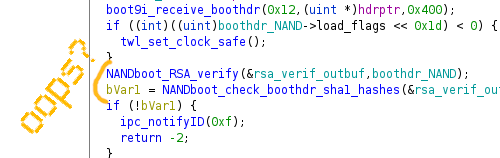

RSA padding oops

What now?

There's almost a bug here...

So let's make one!

Even more glitching

Two birds with one stone

Escalation

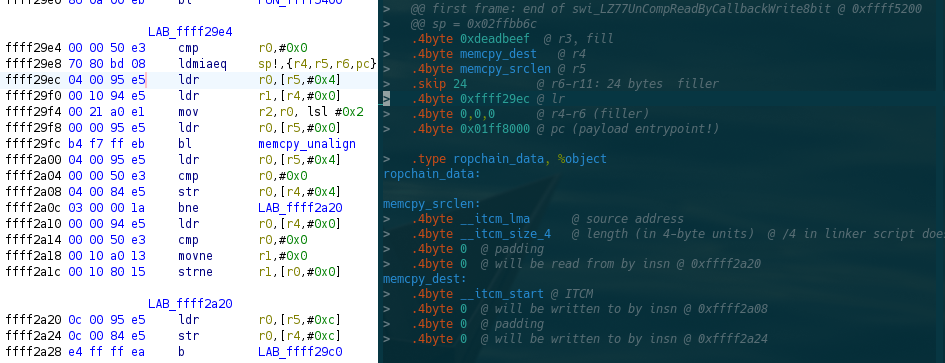

Baby's first ropchain

Escalation

• ARM7 and ARM9 code execution
• Before boot ROM lockout
• With only one glitch

That sounds nice in theory, but...

how do we implement this in practice?

Testing in melonDS

Flip 1 bit in boot ROM binary → exploit works

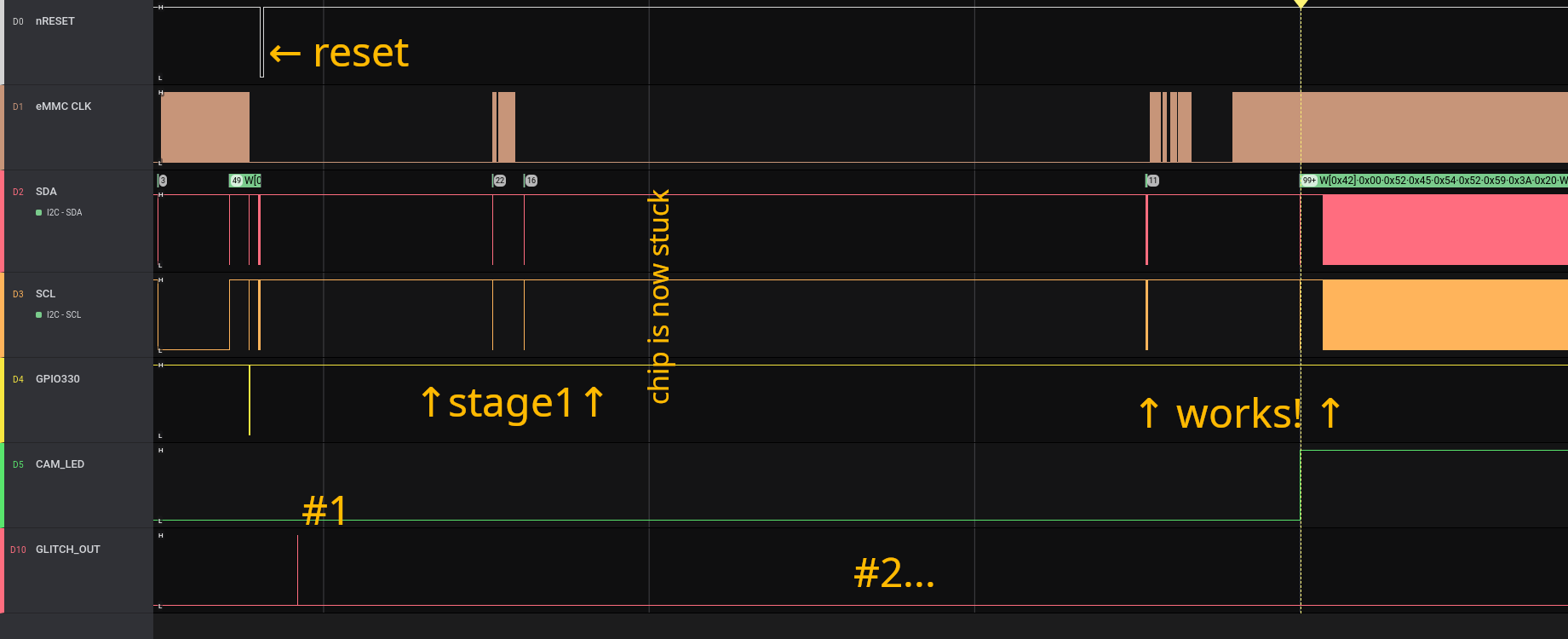

Testing with lab setup

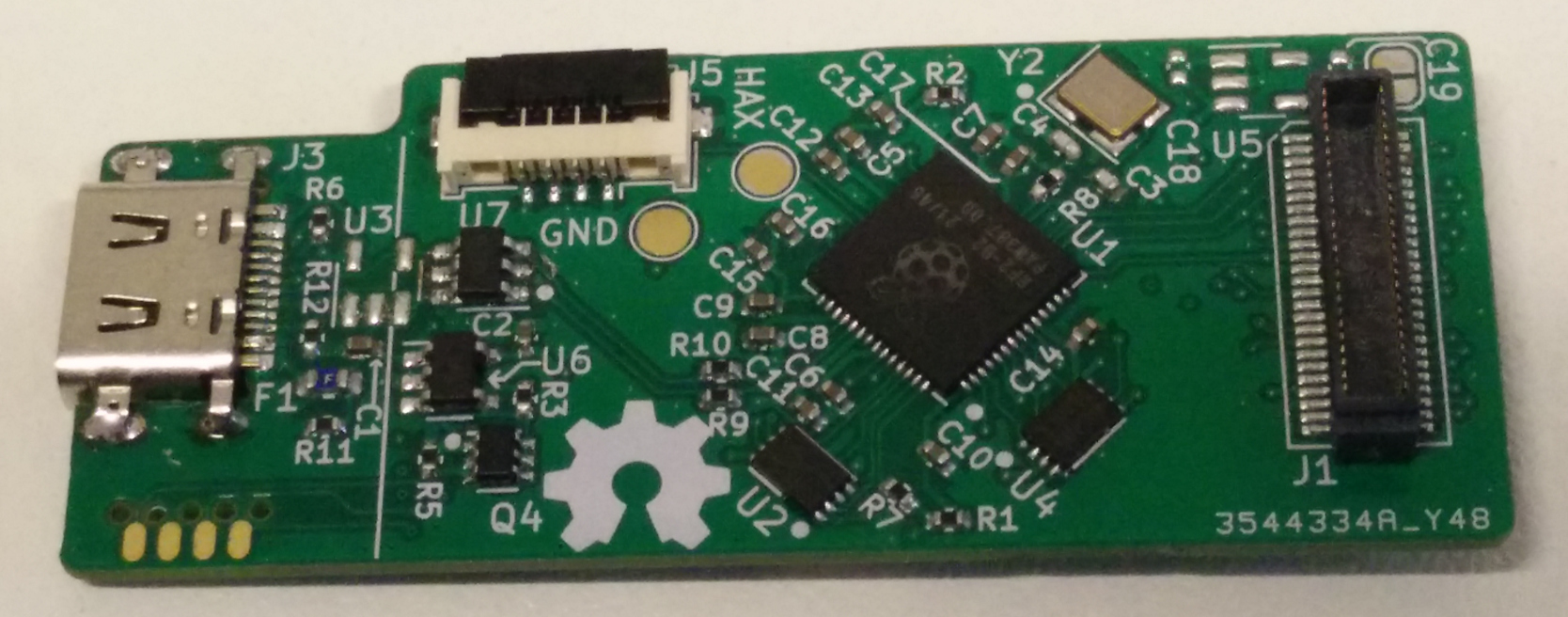

Development of a modchip

• What boot medium?
  • Gamecart? Can't use FIFO+LZ needed for exploit
  • eMMC? Annoying to reflash without other exploit
  • SPI, which sits on the WiFi daughterboard
• What glitching method?
  • EMFI? Not practical
  • Voltage glitching
• What form factor?
  • WiFi interposer/replacement

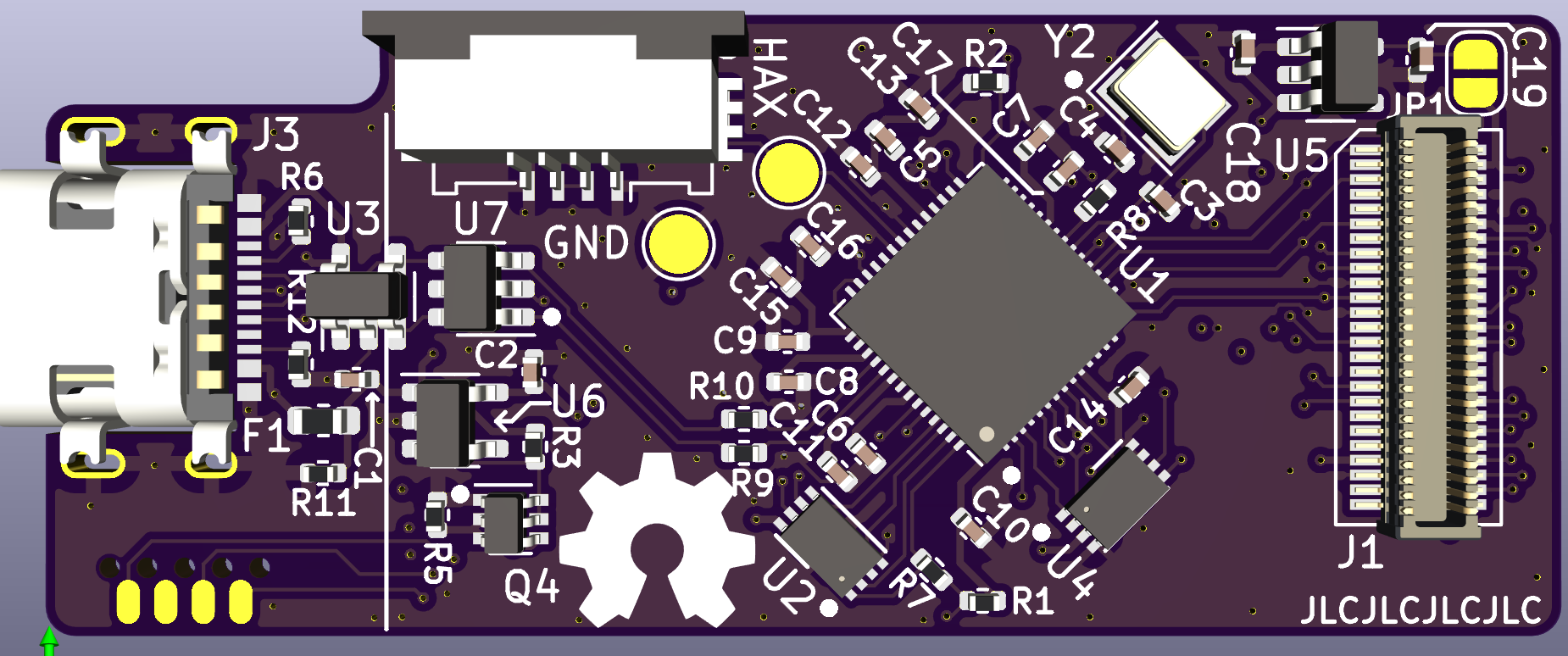

Design

In action

Demo time
